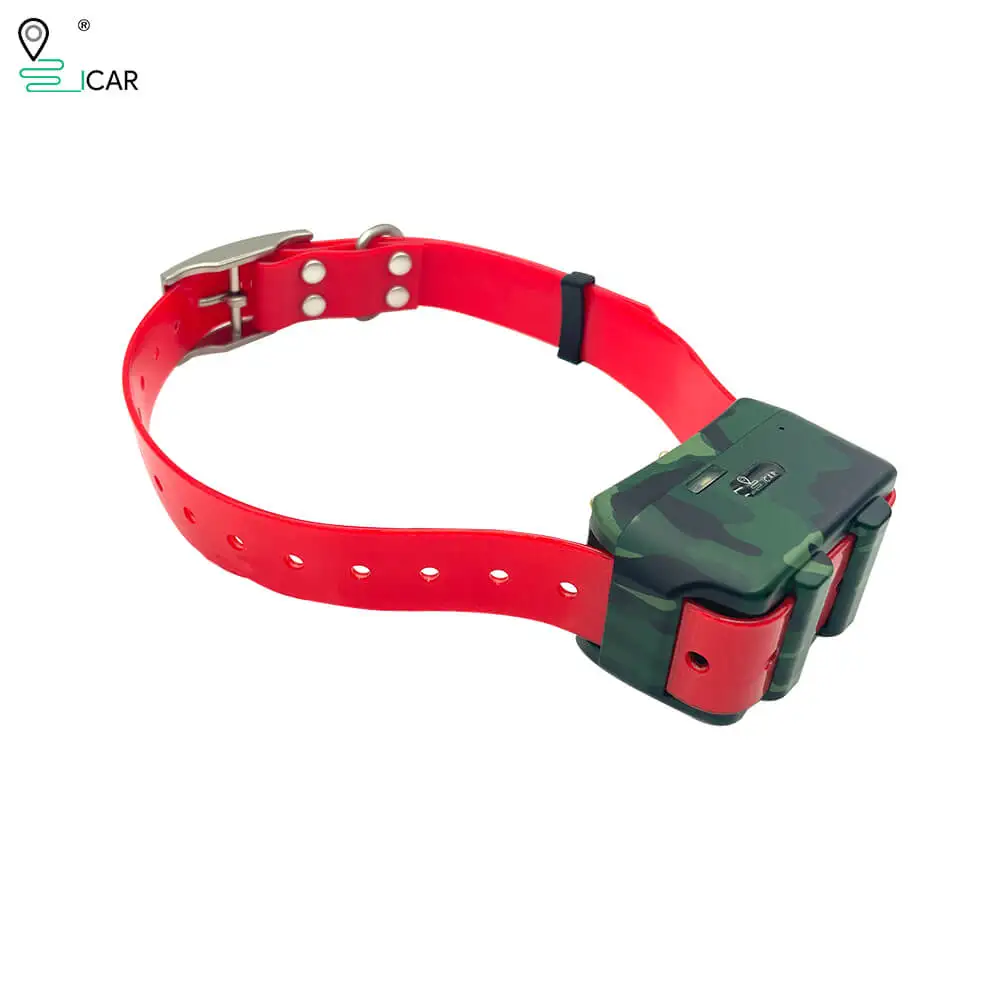

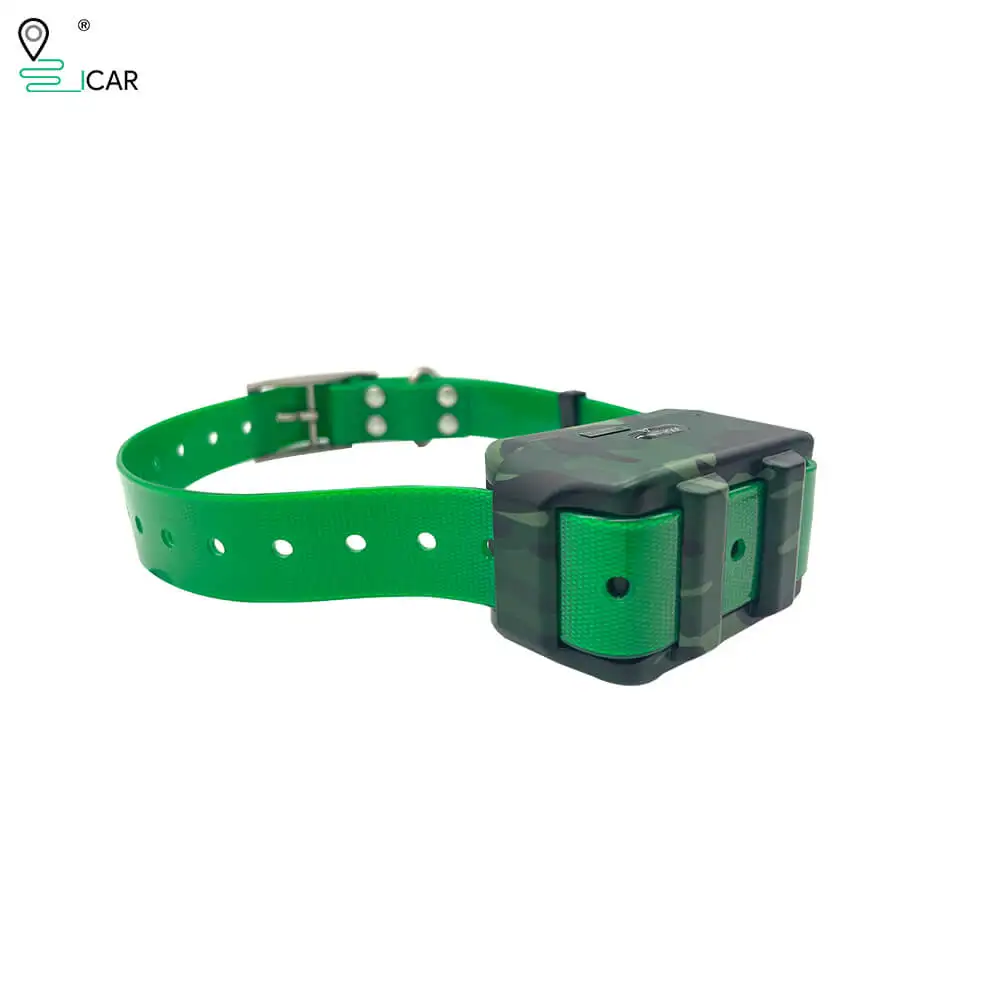

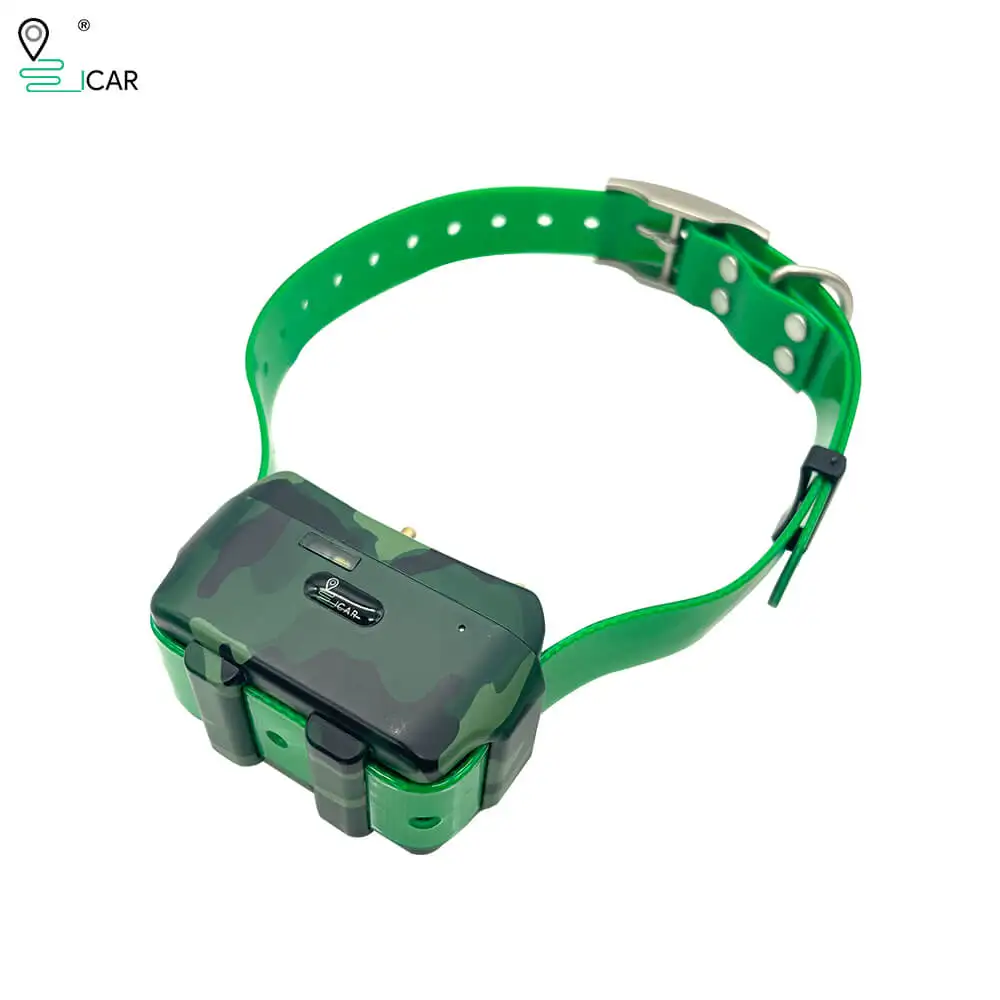

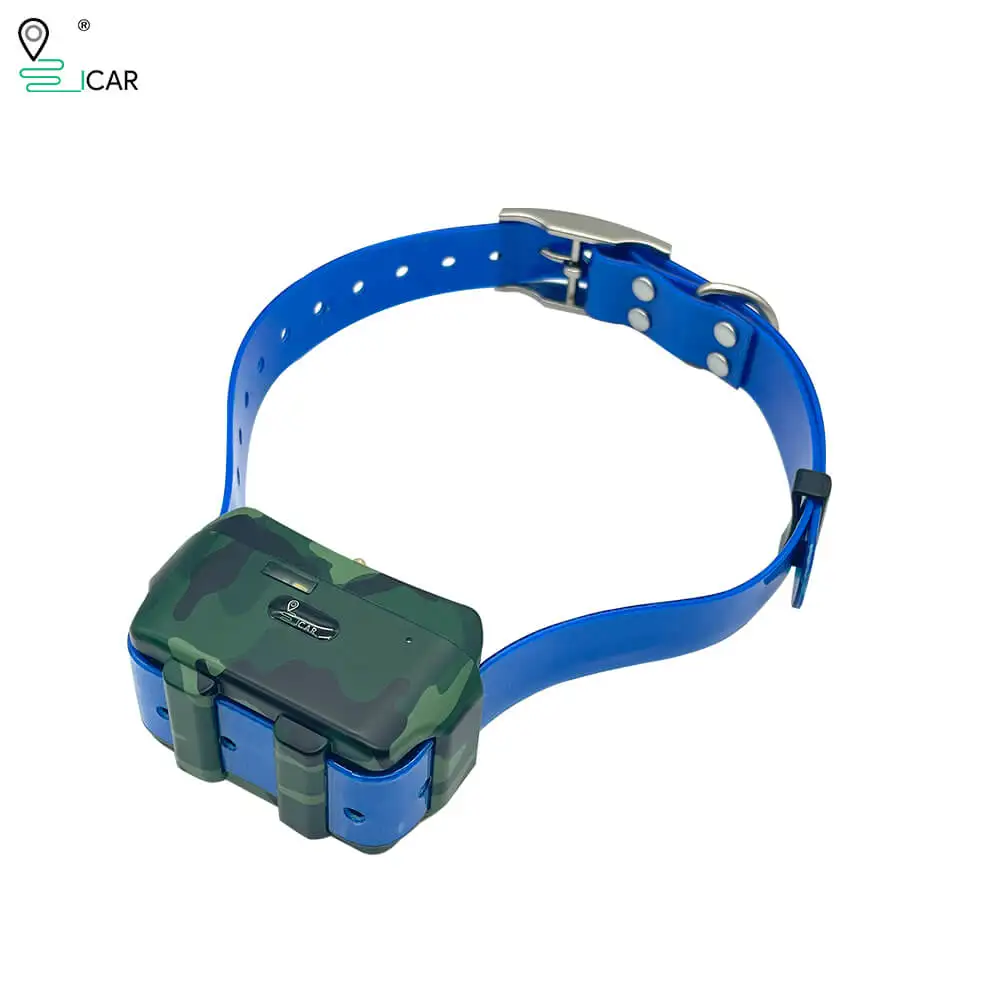

4G Smart Waterproof Hunting Dog GPS Tracker Voice Monitor Collar For Pet Positioning

1. Real Time Tracking

2. Internet upgrade from 2G to 2G+4G

3. Strobe Light, you could set up strobe light to find out your dog in the forest at night.

4. Remote Training(Sound&Electric shock) by sending command on icargps application.

5. 1000 positioning storage capacity: suppose the device be set to upload data every 10 seconds, 1000 positioning storage capacity can work about 3-4 hours when gps is weak or lost. The gps collar will upload data automatically when gps signal come back normal.

6. 180 days tracking route playback.

7. Geo-Fence to set a safe area for you dog, and you will receive an alarm once dog enter or leave the safe area.

8. You could own an admin account to manage all your gps collars at the same time which is no limit on quantity.

9. No distance limit for tracking and trainning.

10. Electronic shock,you could send e-shock command to train the dog

11. Set admin number for the IK122T tracker, then make a call to the sim card inside your IK122T gps collar, you could hear from the dog.

12. Buzzer to help find dog: send search dog command if you could not find out your dog in the forest, the 4G IK122T will play a tune to help you indentify the dog location.

13. Owner can monitor different dogs' tracking route at the same time by setting the tracking route color (max 21 colors)

14. The upgraded 4G IK122T comes with IP68, so don't worry about water in when your dog play near the river or water.

15. The IK122T comes with strong housing which could be anti-bite and anti-drop, just relax and enjoy your hunting trips with your four leg partner.

16. The E-shock pin is waterproof and removable, you could remove it if you don't need the e-shock function.

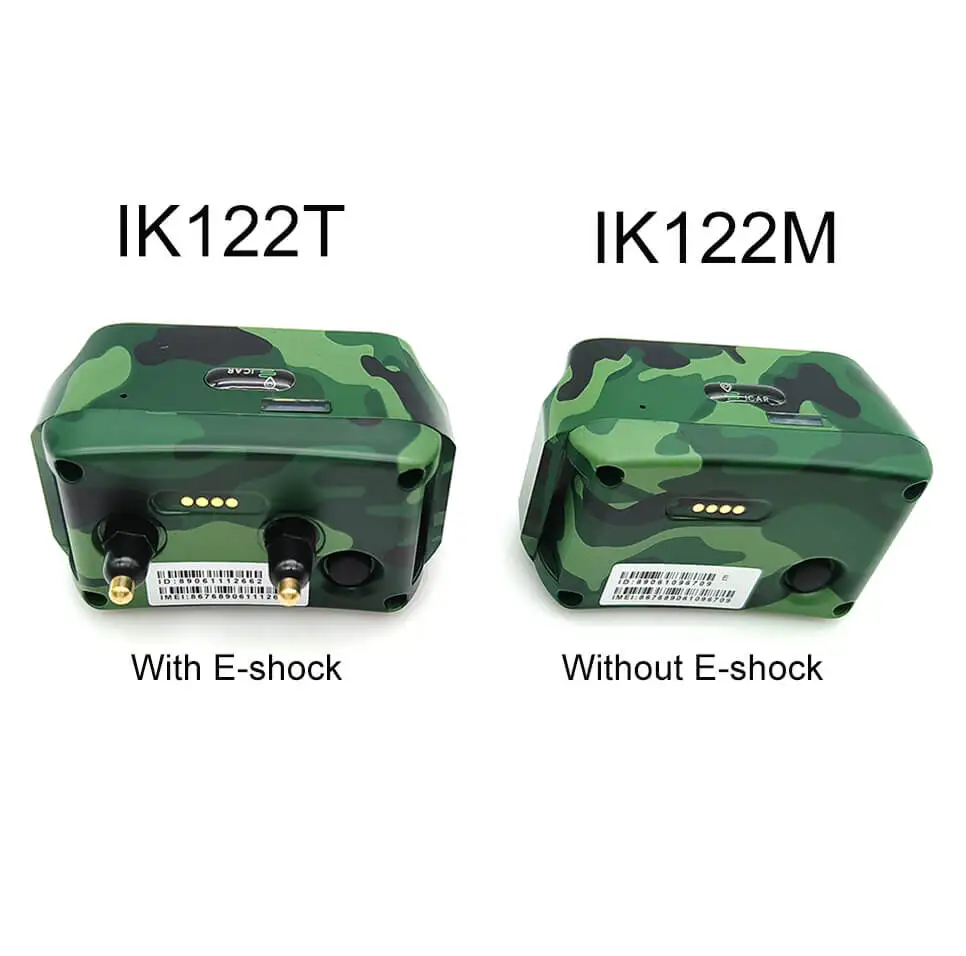

17.Difference of IK122T and IK122M: IK122T comes with E-shock, IK122M comes without E-shock function. Other functions are all the same.

IK122T Hound GPS Training Collar Parameters:

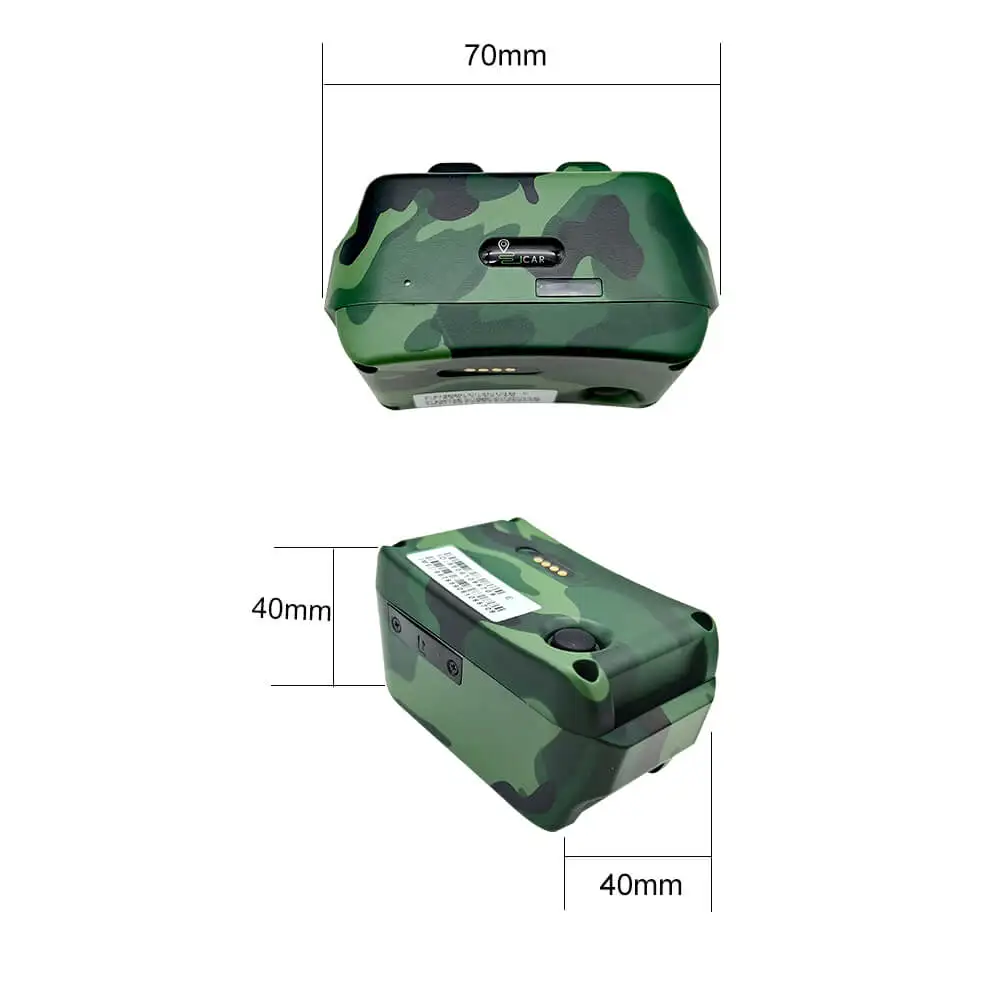

Device Dimension : 70*40*40mm

Device Weight :143g

Telecom Chipset : Quectel EG915U-EU

Frequency Band : GSM 850/900/1800/1900MHz

LTE: B1/B3/B5/B7/B8/B20/B28

Network : LTE&GSM

Location Way : LBS/AGPS/GPS/Glonass

Location accuracy : <10 meters

Tracking sensitivity : -162 dBm

Humidity : 5%--95% non-condensing

Internal Battery : 3.7V 4000mAh Li-Polymer battery

Standby Time : 30 days(1h interval);15 days(5mins);60h(10s)

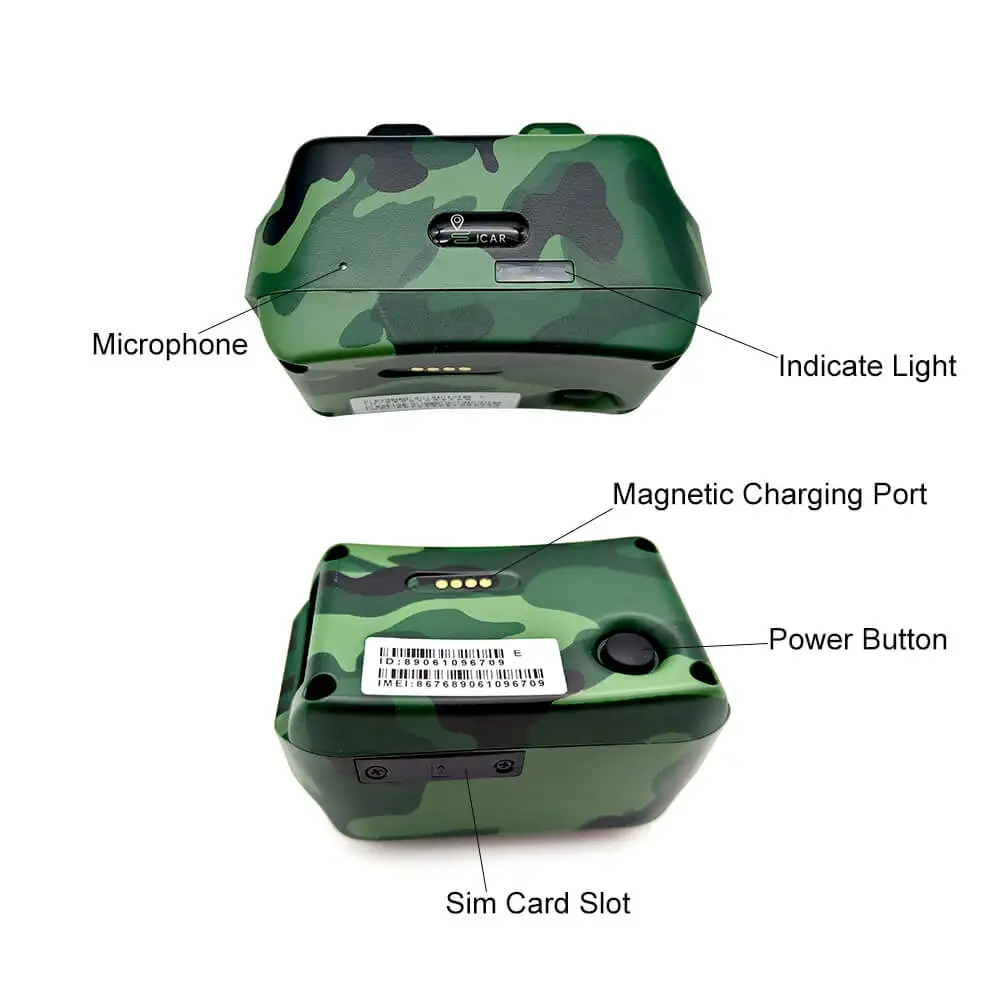

Charging Way : Magnetic Charger

Sim Card : Nano SIM card

Comparing with IK122 PRO Dog GPS Collar:

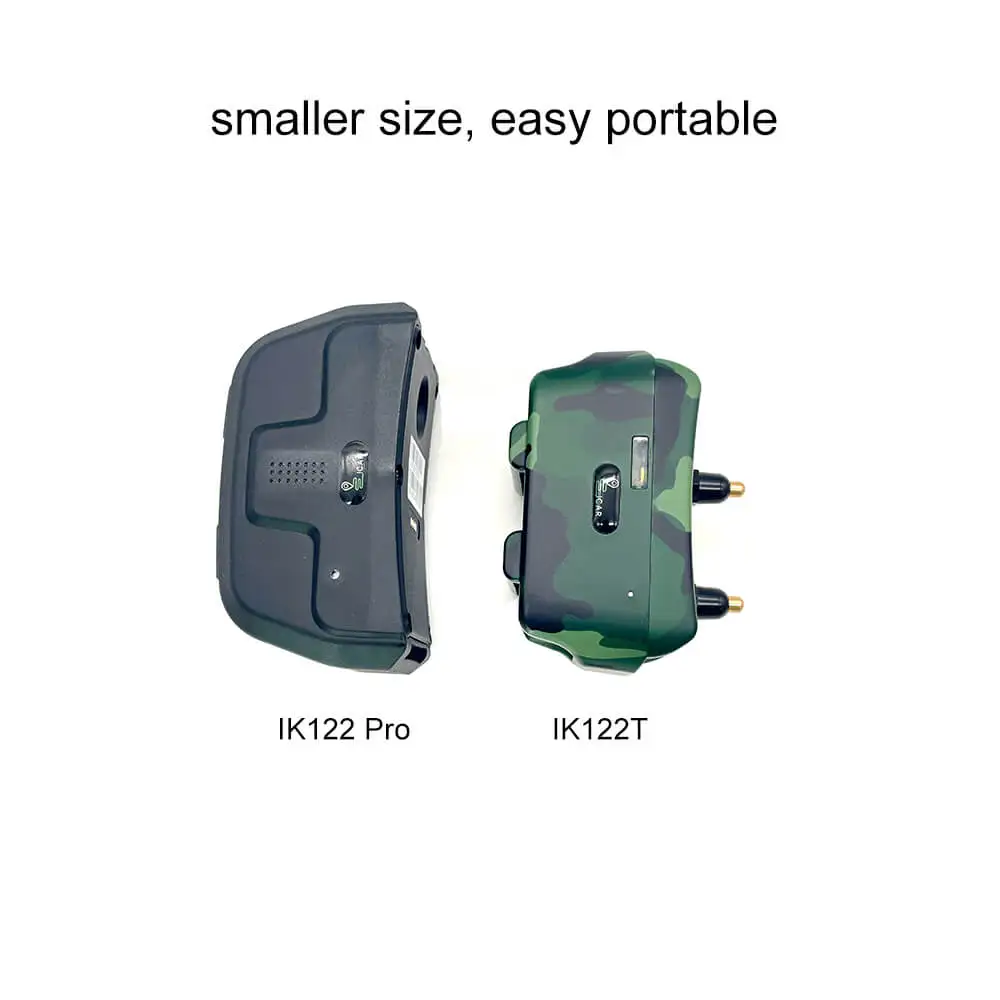

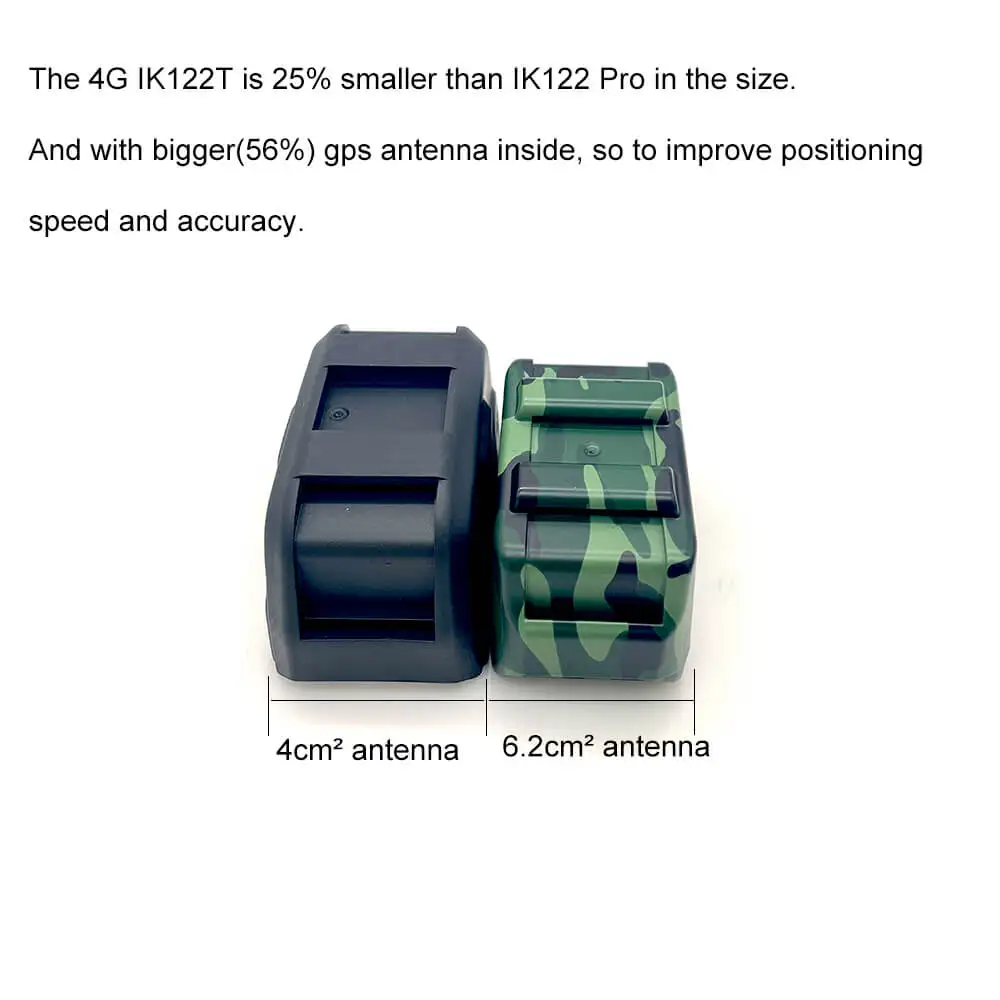

1. IK122T comes with smaller size than IK122 PRO，to make it not only for large dog，but suitable for medium and small puppy.

2. Bigger atenna for IK122T （ increased 56%）, so as to improve the positioning speed and accuracy.

3. Stobe light to find out your dog in the forest at night.

4. Improve the call dog function, and make it much clear to what happen near your dog.

5. No distance limit electronic shock for dog trainning.

6. Set different tracking route colors for different dogs to track dogs at the same time.

Demo: icardemo    password: 123456

Track your devices on our site :www.icargps.net

Or you can download the app to track it.

IK122T Dog GPS Tracker User Manual

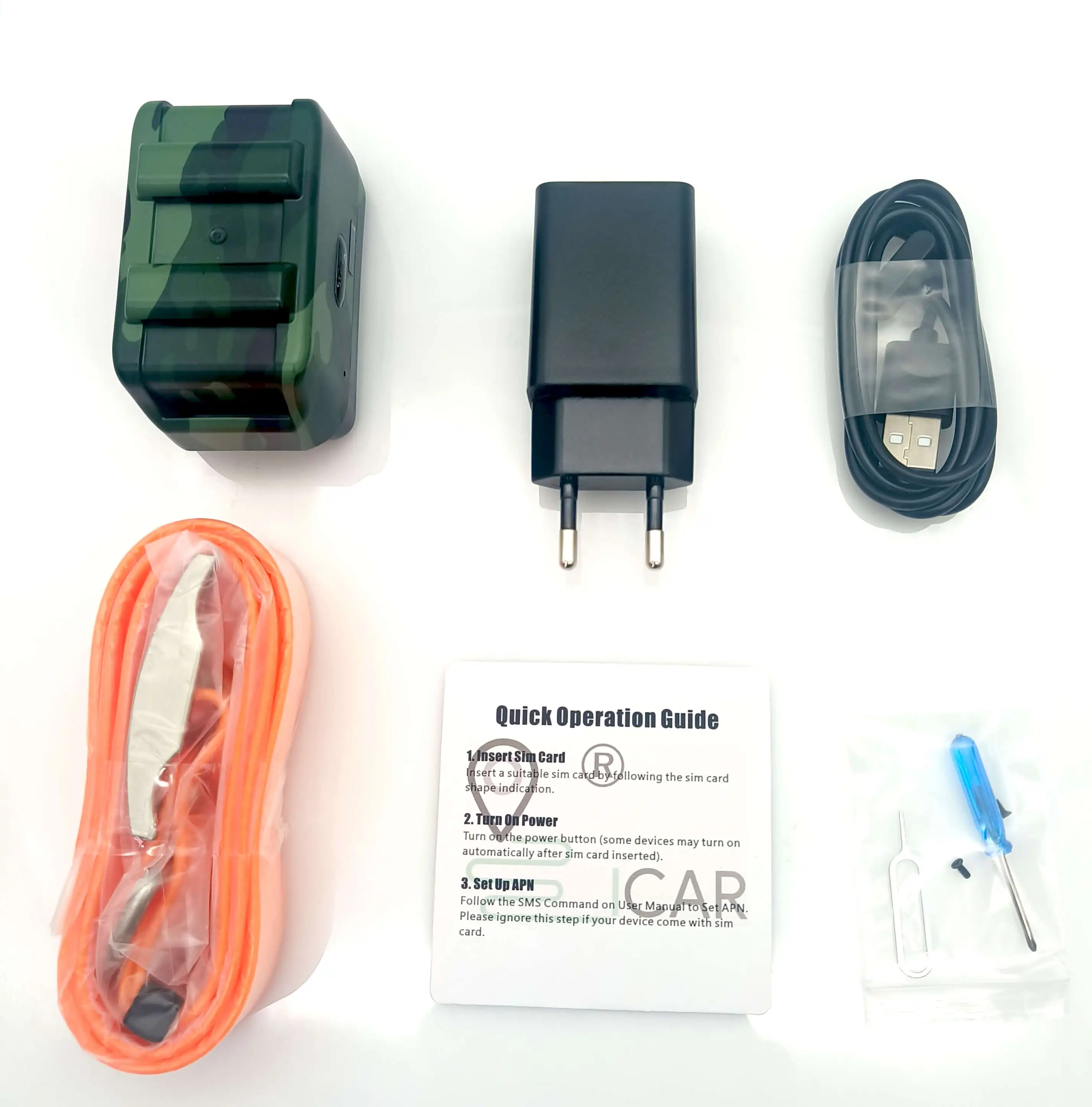

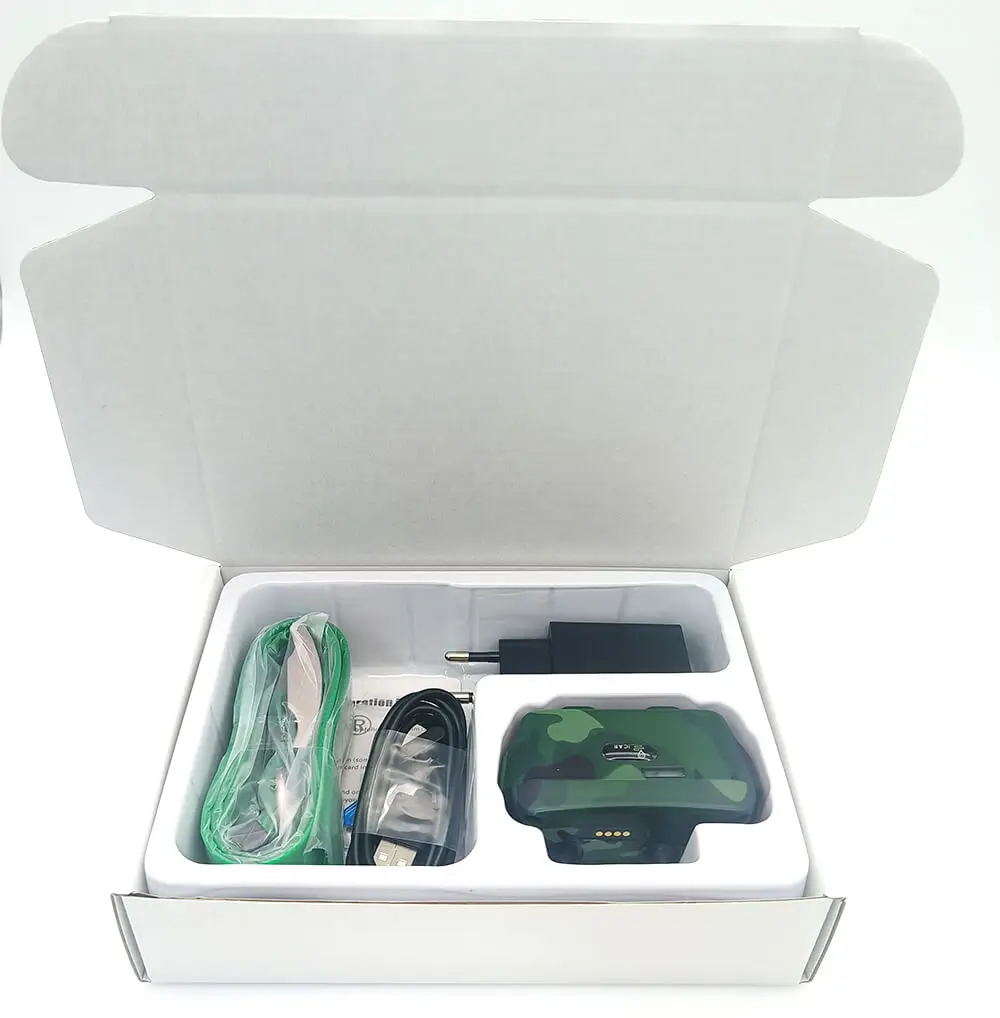

1pc*ICAR GPS Tracker IK122T(IK122M)（4000mah）

1pc* Magnetic USB cable

1pc* User manual

1pc* Dog Belt (Color Randomly)

1pc*Screw pen

2pc* Replacement screws

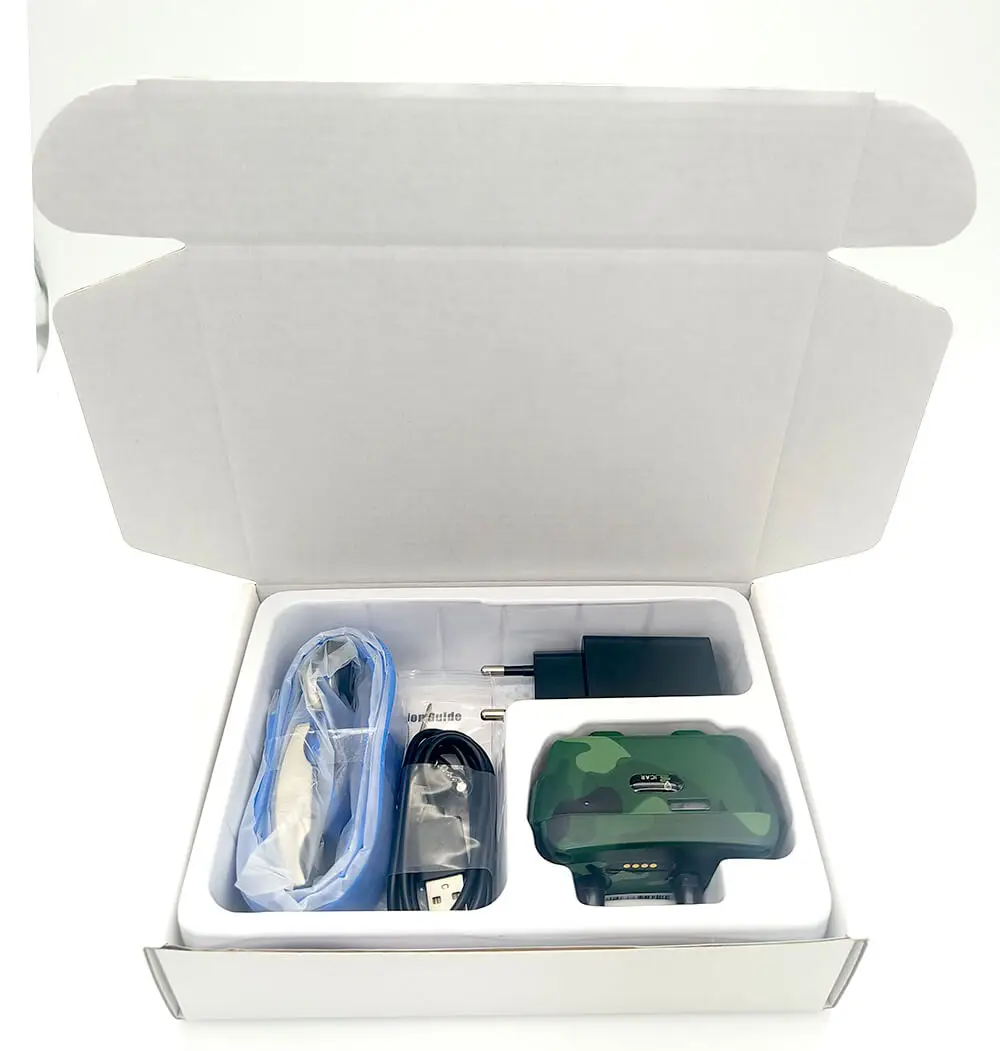

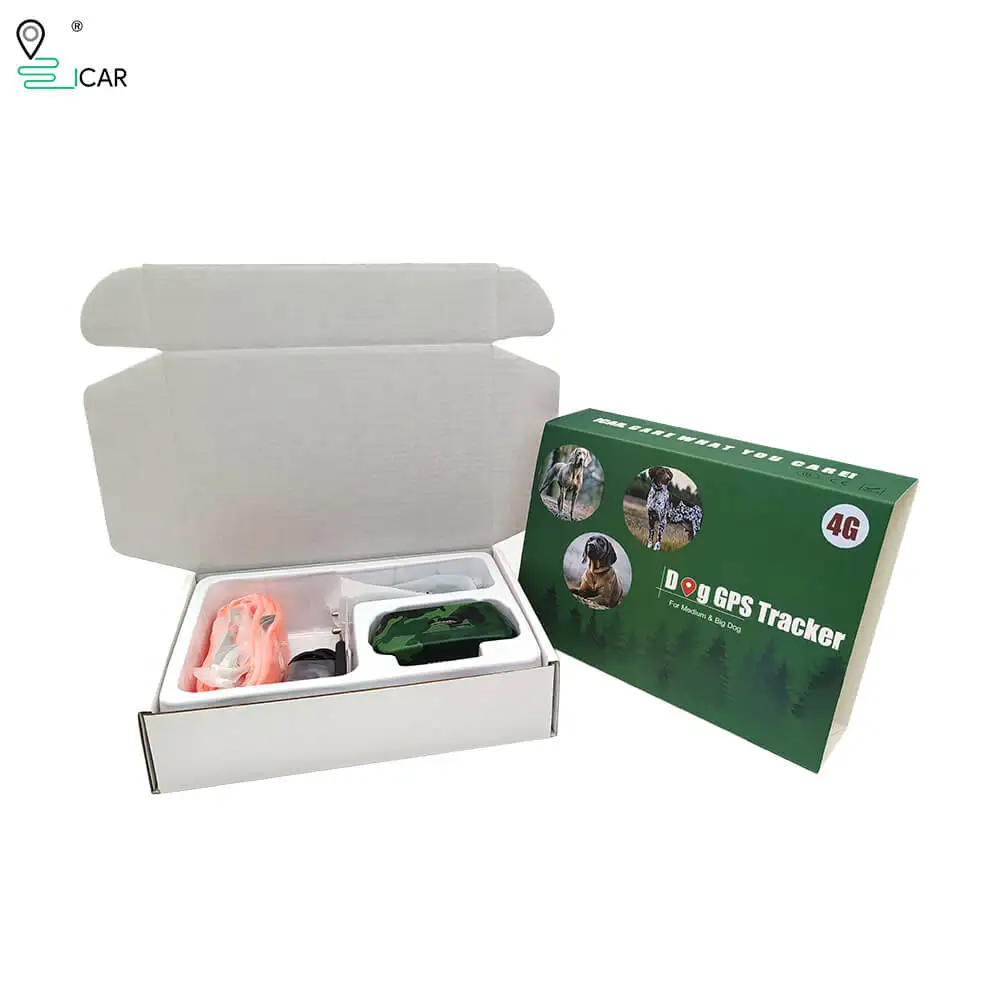

1pc* gift box

l Q：Start up Fail?

l A：Check the device power on or not.

l Q：The device can not obtain location information?

l A：Place the unit at the open area to test.

l Q：How to choose SIM card?

l A:  the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit.

l Q:How to use in the foreign countries?

l A：please set the APN before use，please edit the text “APN123456 CMNET “ and send it to the SIM card of the device，CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.
